System Specifications

• Print Technology – Continuous Ink Jet
• Nozzle Size – 60μm nozzle standard
• Print Speed – Up to 1,000 feet/minute (305m/min) 5×5 sigle line
• Max Print Lines – 5 lines @ 5×5 font, 4 lines @ 7×5 font matrix
• Font Matrix Configurations – 5×5, 7×5, 9×7, 12×12, 16×16, 24×24, 32×32
• Character Height – 0.07” – 0.59” (1.8mm – 15mm); up to 32 dot high font with single line of text
• Throw Distance – Up to 1.2” (30mm) distance from printhead to substrate
• Display – 1280×800, 10.1” LCD touchscreen
• Message Storage – 8GB
• Software Features – Bar codes, graphics, counter, lot counter, shift code, time and date, expiration date
• Operating Features – One button print start / stop, control print delay, reverse print, invert print, bold print, auto-start self-clean
• CleanJet™ – Quick and easy one button start/stop process for automatic self-cleaning operation
• Communication Inputs – Photocell/trigger, encoder, reverse print, BCD select, RS232, reset counter
• Communication Outputs – Alarm light (3-color), print ready, warning
• Ports – Encoder, photocell, serial and alarm beacon, I/O, network, and USB connections

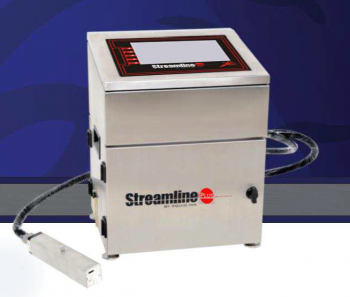

• Printhead – Compact and durable stainless steel design, omni-directional print capability
• Printhead Dimensions – 9.25” (23.5cm) long, 1.5” (3.8cm) in diameter
• Printhead Cable – Vinyl-covered armored conduit; 9.8’ (3m) umbilical length standard; 13.1’ (4m) optional
• Cabinet Construction – Stainless steel cabinet
• Cabinet Dimensions – 19.3” (49cm) H x 14.6” (37cm) W x 12.2” (31cm) D
• Electrical Requirements – 90 – 240 VAC, 50/60Hz
• Operating Environment – 41°F – 113°F (5°C – 45°C)
• Humidity Range – 30 – 95% relative humidity, non-condensing
• Weight – 53 lbs. (24kg)
• Inks – Comprehensive range of inks for a variety of applications and industry requirements including MEK, Acetone, and Ethanol-base; colors and soft pigment formulations available; no chips or RFID tags to deal with

• Print Trigger – Optical, fiber optic, ultrasonic, laser, metal proximity, capacitive proximity
• Encoder – For operation with variable speed conveyors
• Low Ink Light – Alerts users of low ink situations
• Mounting Brackets – Fully adjustable printhead floor stand eliminates vibration from conveyor
• Stands – Stainless cart with two shelves to hold CIJ cabinet and supplies, includes casters
• Printhead Pressurization Kit – Requires plant air
• Four-Port USB Hub – Provides 3 additional USB ports
• Alarm Beacon – Optional warning light with bracket
